Product Overview
Optimize your power regulation designs with the Adjustable Linear Regulator Module – AMS1117-ADJ for KiCAD, a versatile schematic module tailored for engineers, students, and hobbyists. Featuring the adjustable AMS1117 regulator, this module supports multiple voltage regulation scenarios, such as 5V to 3.3V, 9V to 5V, and 12V to 9V, offering a flexible solution for various power management needs.
What’s Included
This product includes a modular schematic block for KiCAD, complete with practical examples:
- AMS1117-ADJ Adjustable Regulator Module

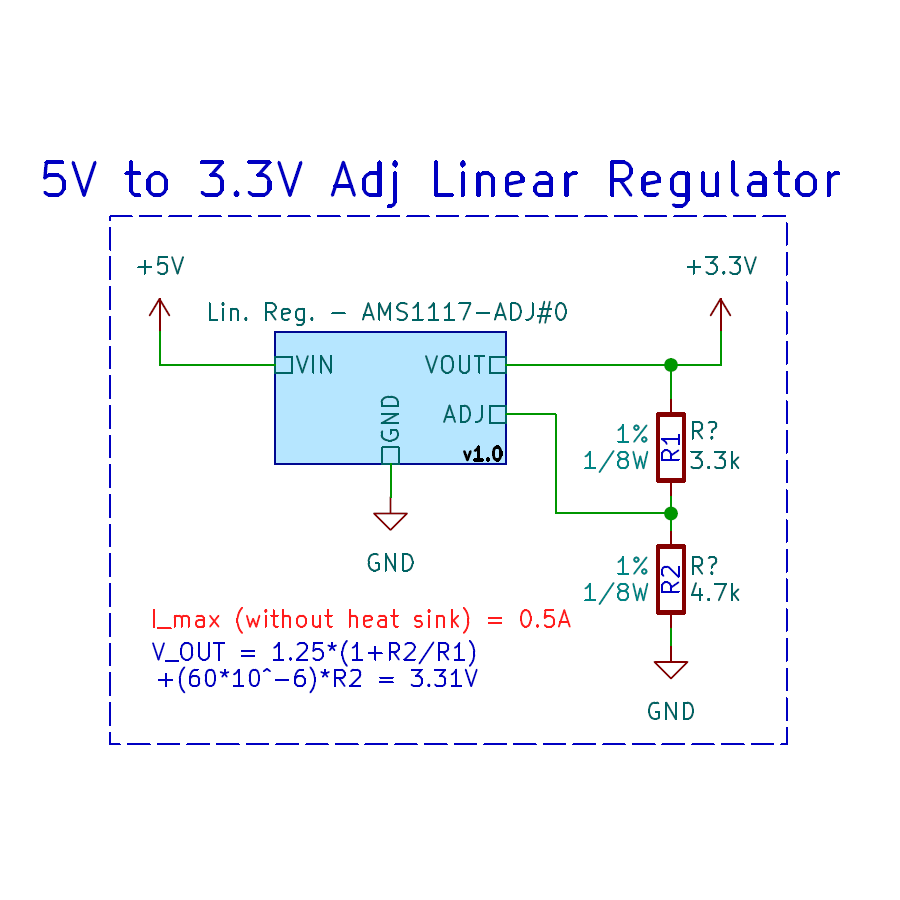

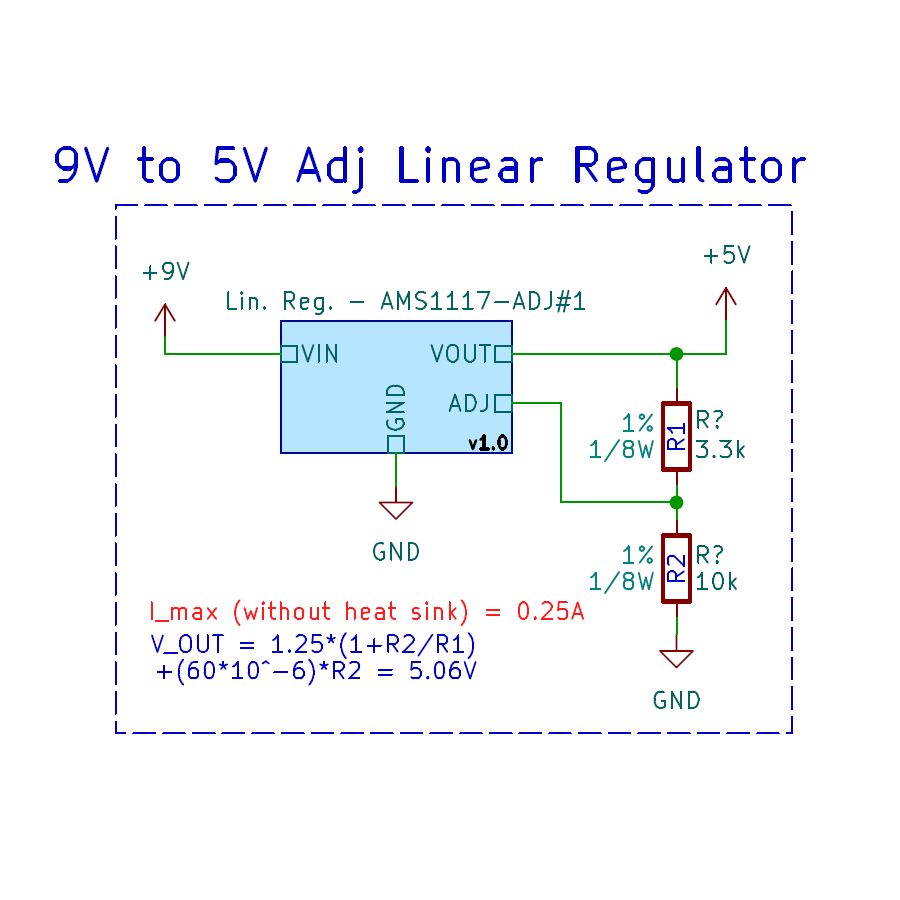

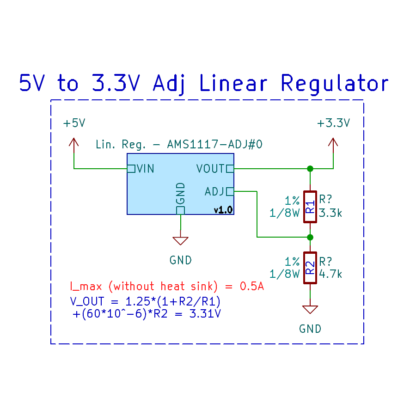

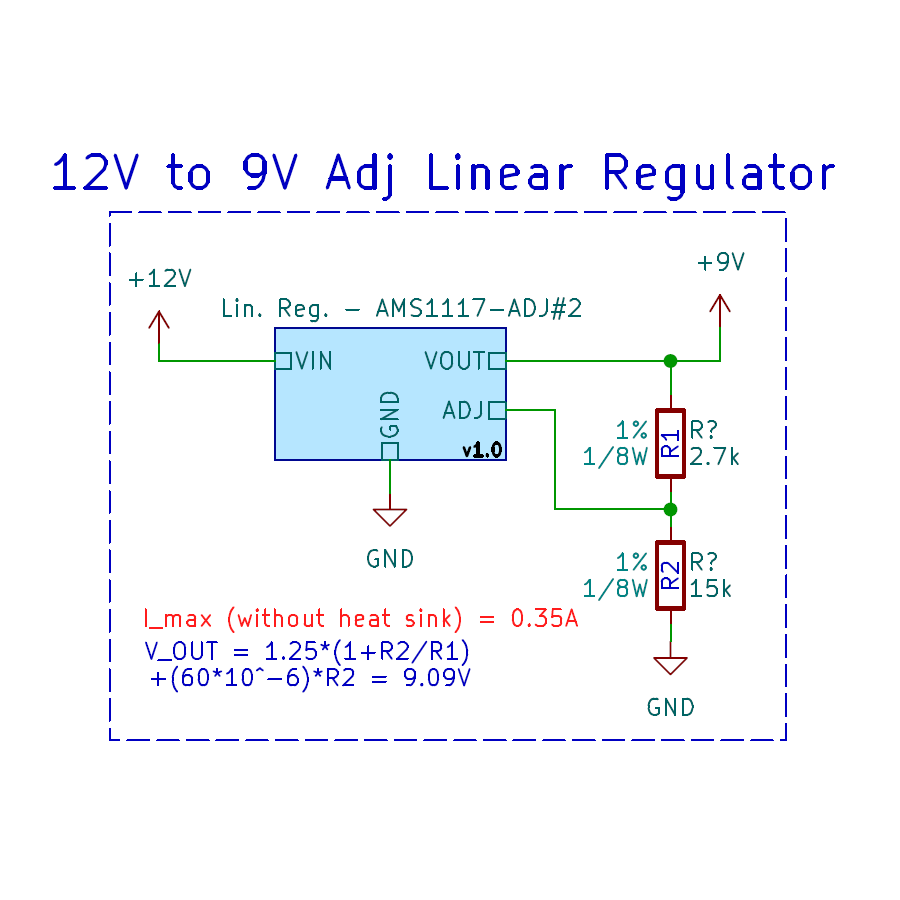

- Example Circuits for 5V to 3.3V, 9V to 5V, and 12V to 9V Regulation
Key Features
- Adjustable Design: Allows for a wide range of output voltages to suit various applications.
- Modular Integration: Pre-designed schematic block for seamless incorporation into your projects.
- KiCAD Compatibility: Specifically crafted for KiCAD 8, ensuring smooth workflows and efficient component management.
- Time-Saving: Pre-tested and configured for immediate use, eliminating setup complexity.
- Versatile Applications: Suitable for powering embedded systems, IoT devices, and general electronic designs.
Who is this for?
The Adjustable Linear Regulator Module – AMS1117-ADJ for KiCAD is ideal for engineers, prototypers, and electronics enthusiasts who require flexible voltage regulation in their designs. Whether you’re a beginner or an expert, this module simplifies your workflow and enhances reliability.
Why Choose Proto Circuit Labs Templates?
Proto Circuit Labs delivers high-quality, practical templates designed to boost productivity and streamline complex workflows. Every template is tested for compatibility, usability, and performance, helping you innovate with confidence.
Product Details
- File Format: KiCAD Project Files (Digital)
- Compatibility: KiCAD 8
Get Started Today!
Streamline your power management designs, minimize errors, and focus on innovation. Download the Adjustable Linear Regulator Module – AMS1117-ADJ for KiCAD and bring your projects to life with ease!
