Description
Product Overview
Optimize your power conversion designs with the DC-DC Buck Converter Module – AOZ1280 for KiCAD, a pre-designed schematic module tailored for engineers, students, and hobbyists. This module simplifies incorporating a high-efficiency AOZ1280-based DC-DC buck converter into your projects. Included is an example circuit showcasing a 12V to 3.3V buck conversion, providing a practical starting point for a wide range of applications.
What’s Included
This product provides a modular schematic block for KiCAD, designed for seamless integration:

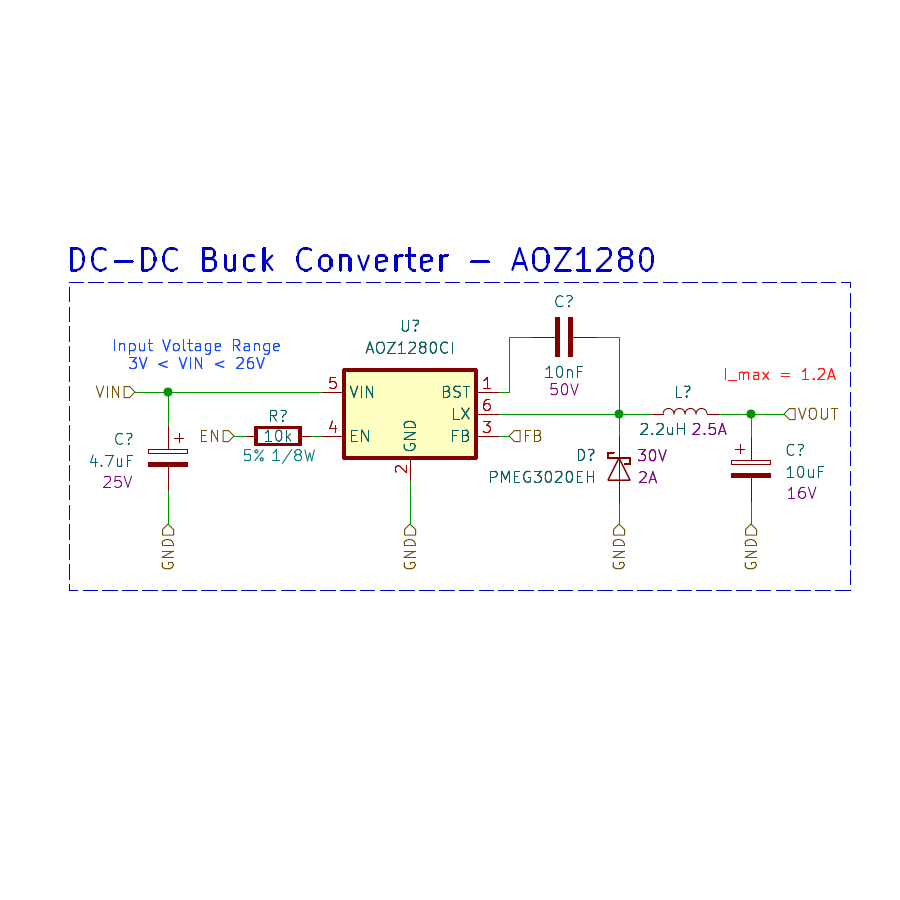

- AOZ1280 Buck Converter Module

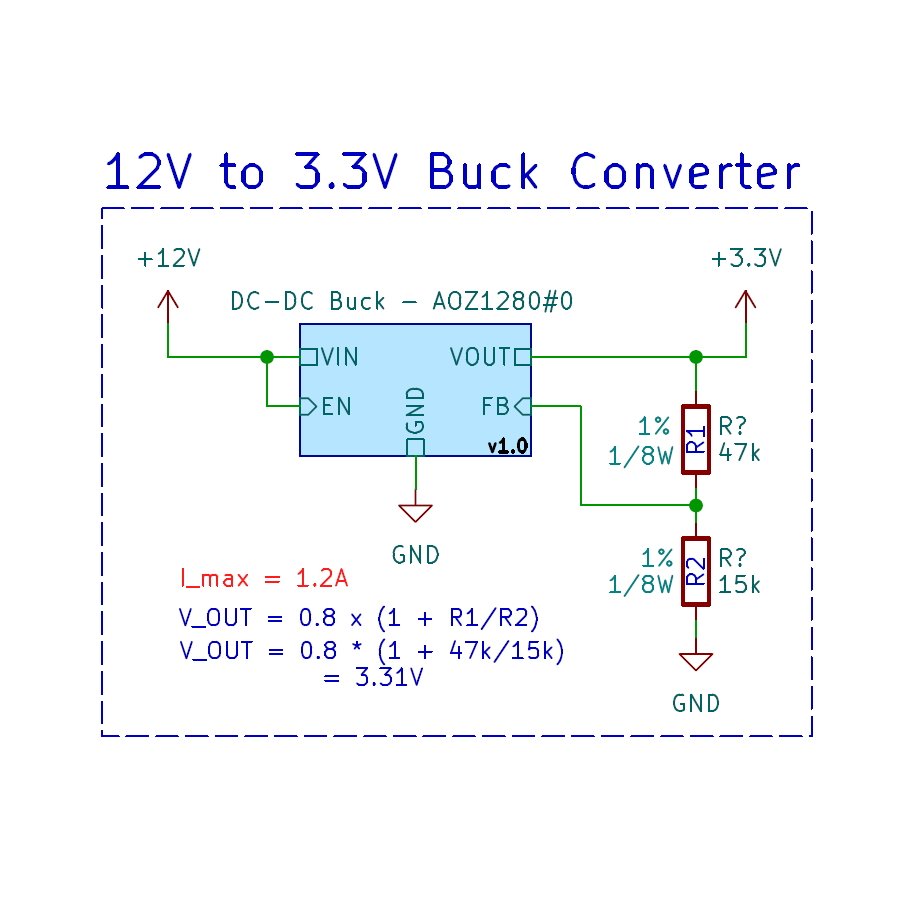

- 12V to 3.3V Example Circuit
Key Features
- Modular Design: Built as an independent schematic block, ensuring seamless integration, easy customization, and a clean, organized layout.
- KiCAD Compatibility: Designed specifically for KiCAD 8, ensuring full compatibility and a smooth workflow.
- Time-Saving: Focus on your project’s specifics with a pre-configured and tested schematic design.
- Practical Application Example: Includes a 12V to 3.3V buck conversion circuit to quickly get you started.
- Versatile Usage: Ideal for projects requiring efficient low-voltage regulation, including IoT devices, embedded systems, robotics, and more.
Who is this for?
The DC-DC Buck Converter Module – AOZ1280 for KiCAD is perfect for electrical engineers, students, and hobbyists focusing on power conversion and management. Whether you are a beginner or an experienced professional, this module will simplify your power design process.
Why Choose Proto Circuit Labs Templates?
Proto Circuit Labs provides high-quality, practical templates that enhance productivity and simplify design processes. Each template is tested for compatibility and usability, equipping you with reliable tools for innovation and success.
Product Details
- File Format: KiCAD Project Files (Digital)
- Compatibility: KiCAD 8
Get Started Today!
Save time, minimize design errors, and focus on creating innovative projects. Download the DC-DC Buck Converter Module – AOZ1280 for KiCAD and power up your designs with confidence!
IMPORTANT:
Please see the disclaimer for additional information about these designs.
