Product Overview
Streamline your power management designs with the DC-DC Buck Converter Module – LM2596 for KiCAD, a ready-to-use schematic module specifically designed for engineers, students, and hobbyists. This module simplifies the integration of a DC-DC buck converter into your projects, enabling efficient voltage step-down solutions. The included example demonstrates a 12V to 5V buck conversion, making it an excellent starting point for various applications.
What’s Included
This product provides a modular schematic block for KiCAD, designed for seamless integration:

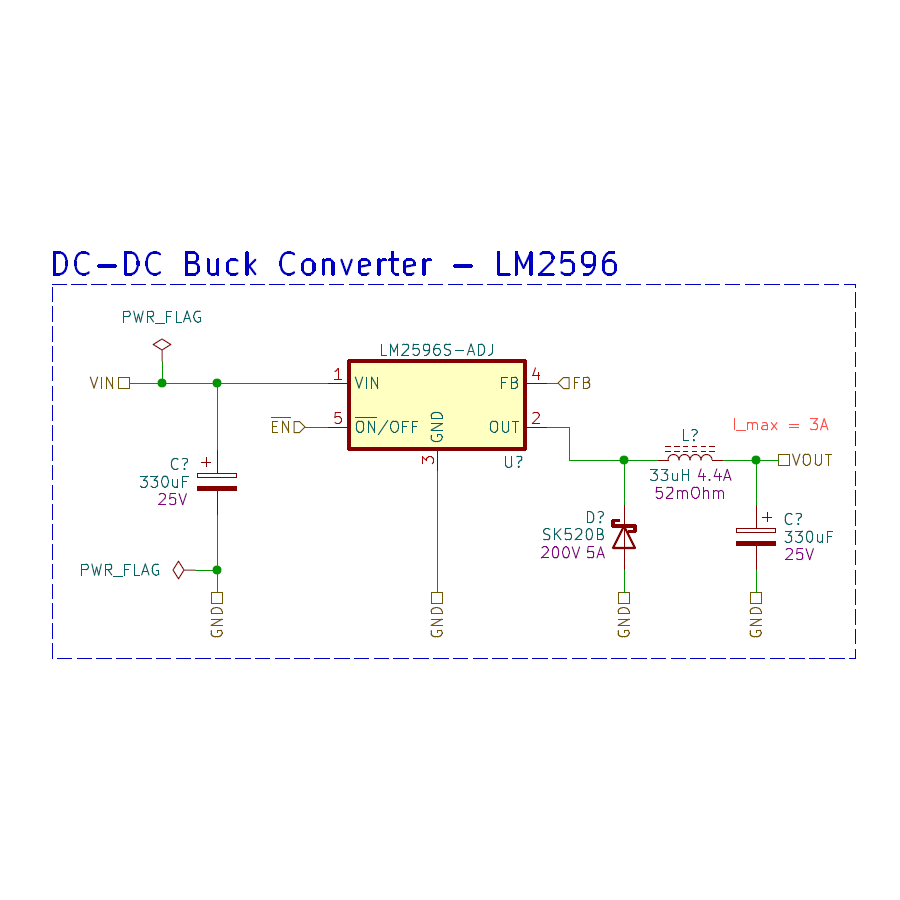

- LM2596 Buck Converter Module

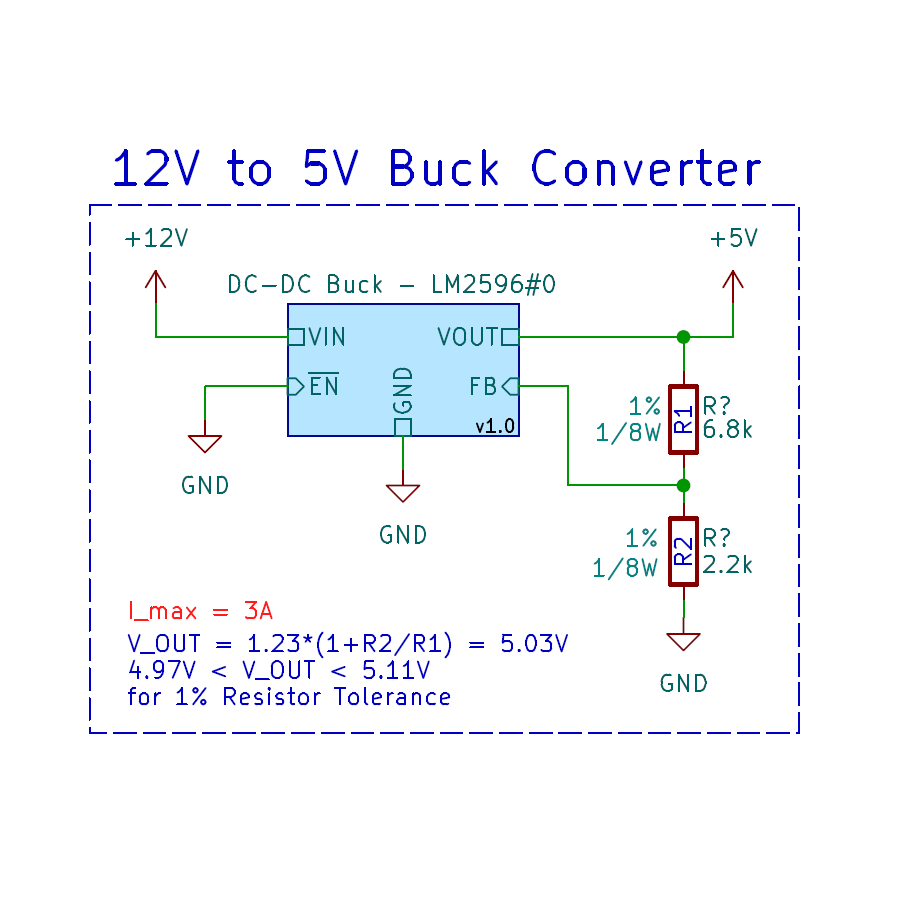

- 12V to 5V Example Circuit
Key Features
- Modular Design: The schematic module is built as a standalone block, ensuring effortless integration, easy customization, and a clean layout.
- KiCAD Compatibility: Developed for KiCAD 8, guaranteeing a smooth workflow and compatibility with the latest version.
- Time-Saving: Skip the setup process and focus directly on your project with a pre-configured and tested design.
- Practical Application Example: Includes a 12V to 5V buck conversion circuit to jumpstart your design.
- Versatile Usage: Perfect for projects requiring efficient voltage regulation, including embedded systems, robotics, IoT devices, and more.
Who is this for?
The DC-DC Buck Converter Module – LM2596 for KiCAD is ideal for electrical engineers, students, and hobbyists working on power management and embedded systems. Whether you’re a beginner or an experienced professional, this module helps you build reliable, efficient power circuits with ease.
Why Choose Proto Circuit Labs Templates?
Proto Circuit Labs delivers high-quality, practical templates that simplify design and enhance productivity. Our templates are tested for compatibility and usability, providing you with reliable tools to innovate and succeed.
Product Details
- File Format: KiCAD Project Files (Digital)
- Compatibility: KiCAD 8
Get Started Today!
Reduce your development time, minimize errors, and focus on your design’s core functionality. Download the DC-DC Buck Converter Module – LM2596 for KiCAD and bring your power management projects to life!
