Description
Product Overview
Streamline your voltage regulation designs with the Linear Regulator Module – L7805 for KiCAD, a pre-designed schematic module perfect for engineers, students, and hobbyists. Featuring the robust L7805 linear regulator, this module simplifies the process of creating a 9V to 5V voltage regulator circuit, making it ideal for a wide range of power management applications.
What’s Included
This product includes a modular schematic block for KiCAD, designed for effortless integration:

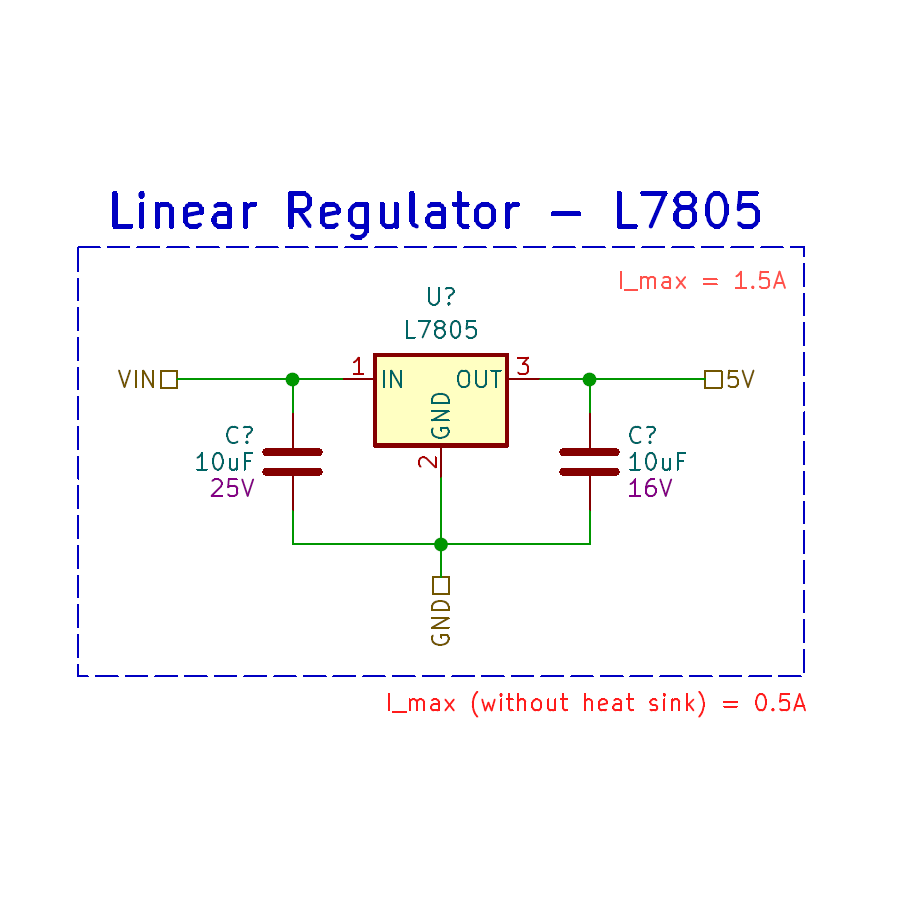

- L7805 Linear Regulator Module

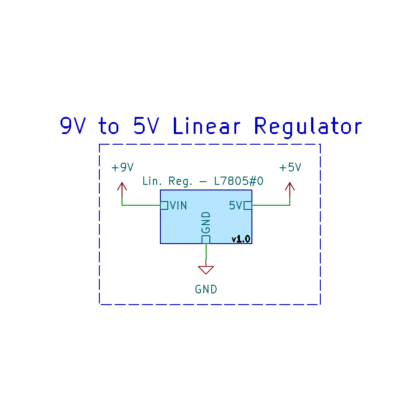

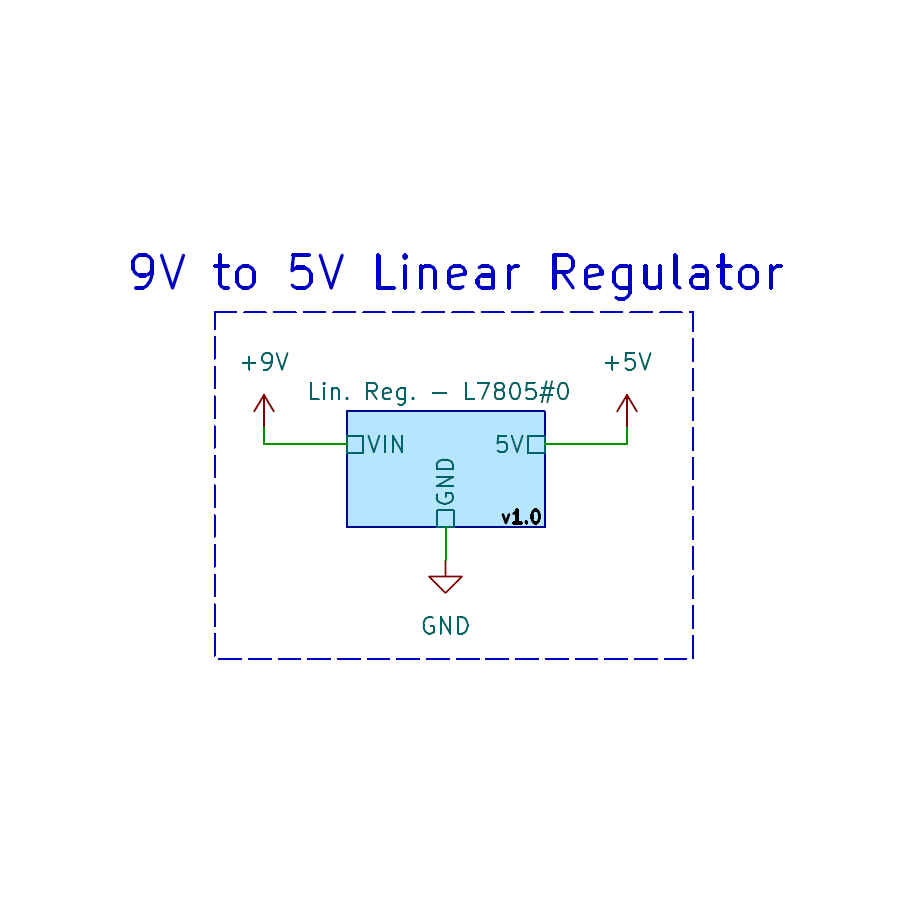

- 9V to 5V Example Circuit
Key Features
- Modular Design: Developed as a clean and organized schematic block for quick integration and customization.
- KiCAD Compatibility: Built specifically for KiCAD 8, ensuring seamless workflow and component management.
- Time-Saving: Pre-configured and tested, allowing you to bypass setup and focus on your unique design needs.
- Practical Application Example: Includes a complete 9V to 5V regulator circuit for a quick start.
- Versatile Usage: Suitable for powering embedded systems, IoT devices, sensors, and various other electronics.
Who is this for?
The Linear Regulator Module – L7805 for KiCAD is designed for engineers, students, and hobbyists in need of reliable voltage regulation. Whether you are a beginner or a seasoned professional, this module ensures dependable performance and simplifies your design process.
Why Choose Proto Circuit Labs Templates?
Proto Circuit Labs creates practical, high-quality templates tailored to enhance productivity and simplify your workflow. Each template is rigorously tested to ensure compatibility and usability, empowering you to focus on innovation and success.
Product Details
- File Format: KiCAD Project Files (Digital)
- Compatibility: KiCAD 8
Get Started Today!
Save time, avoid design errors, and focus on your core project goals. Download the Linear Regulator Module – L7805 for KiCAD and power your designs with confidence!
IMPORTANT:
Please see the disclaimer for additional information about these designs.
