SMD Resistor Schematic Pack for KiCAD

Description

Product Overview

Enhance your PCB designs with the SMD Resistor Schematic Pack for KiCAD, a comprehensive collection of 1,488 pre-designed resistor symbols tailored for engineers, students, and hobbyists. This pack simplifies resistor selection and integration by providing symbols with commonly used resistor values, various tolerances, orientations, and package types. It’s a must-have resource for anyone working on precision and reliable electronic designs.

What’s Included

This product includes a complete schematic symbol pack for KiCAD, covering a wide range of resistor options:

• 62 Commonly Used Resistor Values
• Two Tolerances: 1% and 5%
• Four SMD Packages: 0402, 0603, 0805, and 1206

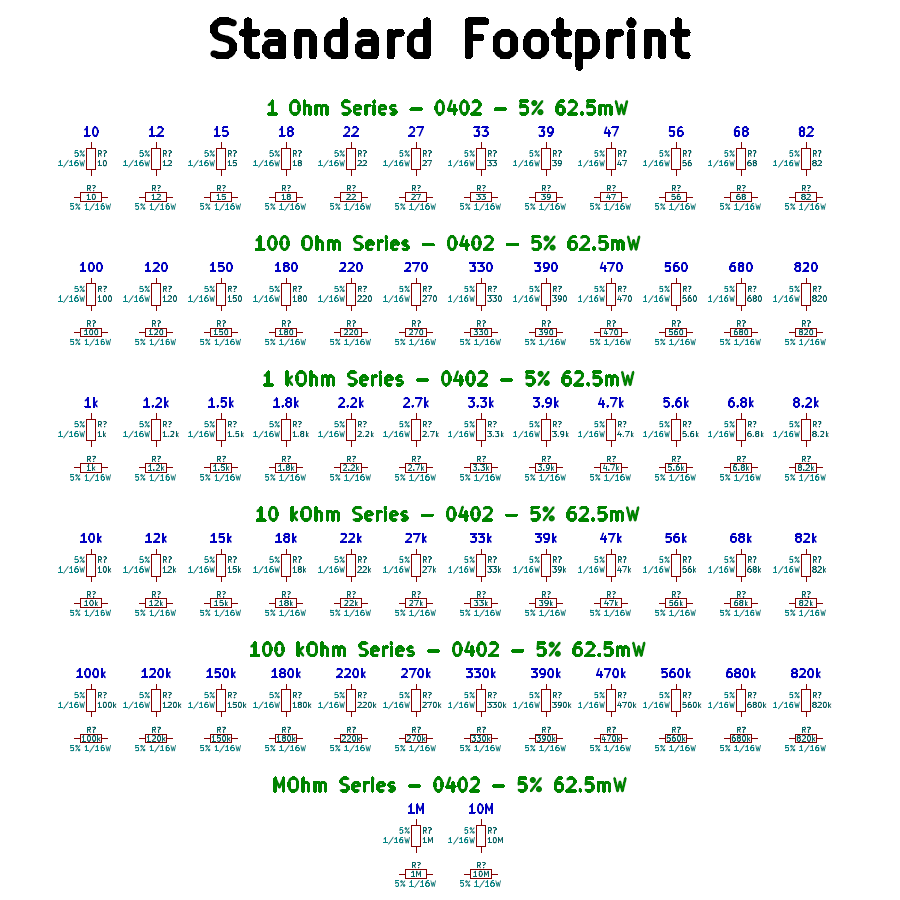

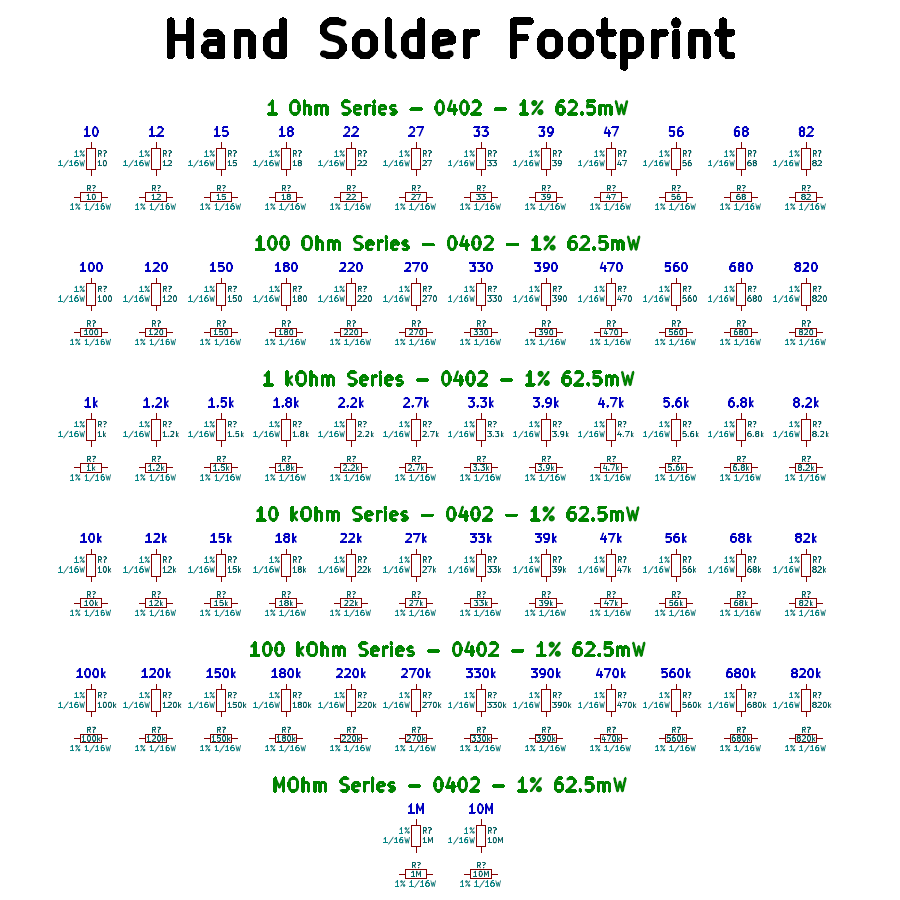

• Standard and Hand Solder Footprints for Each
• Both Vertical and Horizontal Symbol Orientations
• YAGEO Part Numbers for All Resistors

This comprehensive pack provides everything you need to create efficient, organized, and professional resistor layouts in KiCAD.

Key Features

• Comprehensive Symbol Pack: Includes 1,488 pre-designed resistor symbols covering a wide range of values, tolerances, packages, and orientations.
• High Compatibility: Specifically designed for KiCAD 8, ensuring a smooth workflow and seamless integration.
• YAGEO Part Numbers: Each resistor includes a YAGEO part number for easy sourcing and BOM generation.
• Versatile Design: Supports standard and hand-solder footprints, making it suitable for both prototyping and production.
• Time-Saving: Eliminates the need to manually create resistor symbols, allowing you to focus on design specifics.
• Professional Layout Options: Both vertical and horizontal symbol orientations ensure flexibility and clean schematic organization.

Who is this for?

The SMD Resistor Schematic Pack for KiCAD is perfect for electrical engineers, students, and hobbyists working on electronic designs. Whether you’re designing a simple circuit or a complex system, this pack will save time and enhance the quality of your schematics.

Why Choose Proto Circuit Labs Symbol Packs?

Proto Circuit Labs offers high-quality schematic and symbol packs to simplify your design workflow and boost productivity. All our packs are tested for compatibility and usability, providing you with reliable tools to achieve professional-grade results.

Product Details

• File Format: KiCAD Symbol Library (Digital)
• Compatibility: KiCAD 8

Get Started Today!

Streamline your resistor selection process and design with confidence using the SMD Resistor Schematic Pack for KiCAD. Download this pack now and take your PCB design to the next level!

IMPORTANT:
Please see the disclaimer for additional information about these designs.
